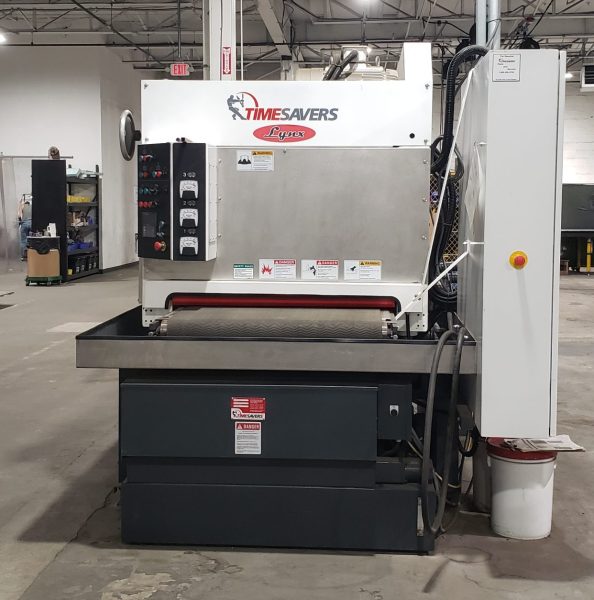

USED – Timesavers – Lynx 37MWT-DDB-60 ***ONLY 80 HOURS OF USE***
Features
The 37 Series (LYNX) is a complete machine with an integrated filtration system to keep metal parts cool during machining, and adding lubricity ensuring the abrasive belt’s service life is extended. A high-pressure air system dries the metal parts as they are exiting the machine.
- Removal of burrs on laser, water-jet, punched, and cut metal parts.
- Provide the finest finish in the industry
- Deburr, edge break, & finishing of metal in one pass
- Mixing of metals, including titanium, aluminum, carbon & stainless steel, copper, etc.
General Specifications:
- Abrasive belt size: 37” x 60”
- Maximum width stock: 36”
- Minimum part length: 8”
- Infeed loading area: 23”
- Machine opening: 0 – 8”
- Feed speed: 15-45 FPM
- Voltage/Phase/Frequency: 208/3/60
- Approximate full load amps @ 208 volt: 184.8
- Motors: 20 HP, 20 HP
- Passline height: 38” constant
- Compressed air requirements: 4 CFM @ 90 psi
- Approximate shipping weight: 9,300 lbs.
- Number of heads: 3
- Head types: Widebelt & Brush
- Diameter of Drums (2) 6″
- Diameter of Brush (1) 6″
Additional Features:
- 6” Diameter, Adjustable Contact Drums
- Constant Passline
- Dual Infeed and Dual Outfeed Holddown Rolls
- NEMA 12 Electrical Enclosure
- Motorized Thickness Adjustment
- Air Knife Parts Dryer
- Air Operated Disc Brake
- Quick Release Outboard Support
- Automatic Advance Paper Media Filter
- 20 Horsepower Main Drive Motors
- Centralized Control Panel
- Infeed Stop Bar
- Percentage Load Meter
- Hour Meter
- Digital Thickness Readout
- Variable Speed Conveyor Drive
- Through-Beam Abrasive Belt Tracking
- Centralized Lube Block
- Machine widths: 7″
- Self-contained filtration unit located beneath the machine to minimize its footprint
- Electronic photo tracking eyes for accurate abrasive belt tracking
